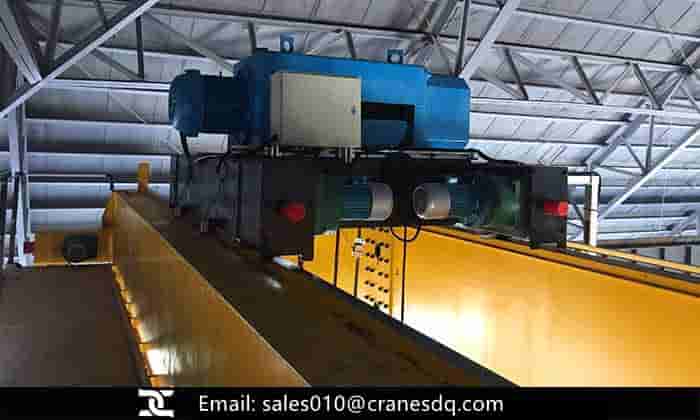

Hoist double girder overhead crane is a heavy duty double girder overhead crane with the electric hoist as the lifting mechanism, with the lifting capacity 5 ton to 63 ton, used for general material handling and lifting. The working class of the hoist double girder overhead crane is A3 to A5. Dongqi Crane offers unique double girder overhead crane designs for customers. The main specifications of electric hoist double girder overhead crane are as following for your reference.
| Product Type | LH |
|---|---|
| Eot Crane Lifting Capacity | 5~63t |
| Eot Crane Span Length | 8m~32m |
| Eot Crane Working Class | A3~A5 |
| Eot Crane Ambient Temperature | -20~40℃ |
Components of electric hoist double girder overhead cane
The eletric hoist double girder eot crane is mainly consisted of the following jib crane components, such as, bridge frame, trolley, crane travelling mechanism, and electrical control system.
Electric hoist double girder overhead crane drawing
Application of electric hoist double girder overhead crane
As one kind of common material handling equipment, the electric hoist double girder overhead crane is widely used in machinery processing workshop, warehouses, yard, plants, and other places, etc. It also can be used as an alternative for double girder overhead crane, used in production workshop of textile industry and food industry, etc.
Advantages of electric hoist double girder overhead crane
- compact structure, good rigidity,
- easy operation, low noise,
- low building height clearance,
- light weight and small wheel pressure,
- safe and reliable,
- Attractive appearance, etc.
Features of electric hoist double girder overhead crane
- Double girder structure makes the crane bridge have sufficient strength, rigidity, and stability.
- Rail-in-middle box girder design thoroughly meets the requirement to strength, rigidity and stability.
- End beams designed with simple structure can be easily installed with main beam by high-strength bolts.
- CD or MD high quality wire rope electric hoist is used as lifting mechanism.
- Soft starting motors with light current is used with ground control.
- Dual-motor independent drive device is adopted to reduce the wear of rail gnawing and reduce the possibility of wheel climb off track fault, etc.
- Motor is directly controlled by contactor, which can make the motor achieve single and double speed and reversing control.
- Frequency converter is used to change the frequency and voltage of motor power to realize the function of speed adjustment control of motor.
- Multiple safety protection system is adopted, including short circuit protection, no-voltage protection, emergency power off switch protection, overload limit protection, travel limit protection, zero and chain protection, ground protection, etc.
