1 ton Portable Gantry Crane for sale to Pakistan

We have completed 1 order of 1 ton gantry crane from Pakistan, this is a 1 ton Portable Gantry Crane, precision parts and welded components are installed in alignment, easy to operate and stable in performance. The gantry crane adopts national standard profiles, and the steel plate is laser-cut with smooth incisions. All detachable design, convenient transportation, simple installation, flange butt, 8.8 high-strength bolt connection

1 ton Portable Gantry Crane Parameters

  • Lifting capacity: 1T
  • Lifting height: 4M
  • Span: 6M
  • Power supply: 220v, 50hz, 3phase
  • Pendant control

Technical Specifications

Lifting capacity t 1
Lifting height m 4
Span m 6
Speed Trolley traveling speed m/min 21
  Lifting speed 6.6
Working class   / A3
Power supply   V/Hz/Ph 220v, 50hz, 3phase
Trolley traveling power KW 0.4
Hoisting power 1.5
Total power 1.9
Total Weight kg 1100
Protection class / IP54
Insulation grade / F
Ambient temperature / -20℃ ~ +40℃

1 ton Portable Gantry Crane Finished Installation

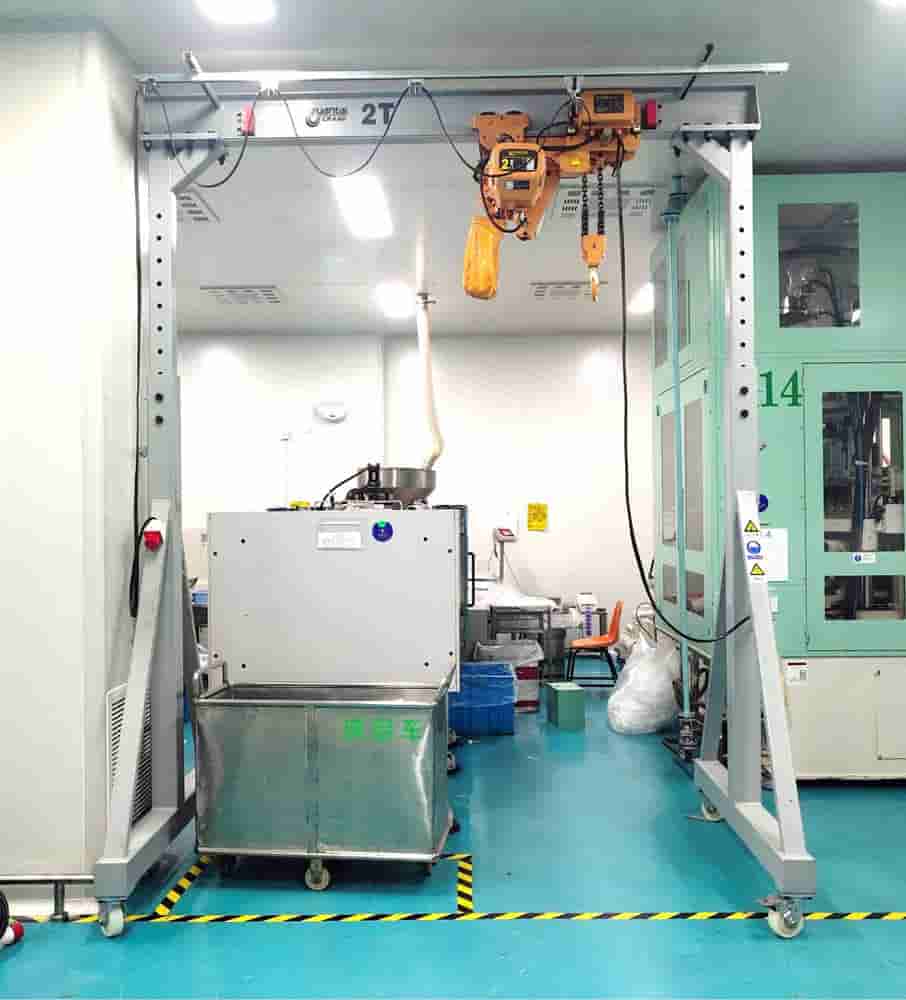

1 ton Portable Gantry Crane Finished Installation for reference 1 ton Portable Gantry Crane Finished Installation for reference

(The above picture is for reference to crane model only)

Portable gantry cranes are a variant of overhead cranes. It is mainly used for the loading and unloading of outdoor cargo yards, stockyards and bulk cargoes. Its metal structure is like a door-shaped frame, and two feet are installed under the bearing main beam, which can walk directly on the track on the ground, and the two ends of the main beam can have outrigger cantilevers. It has the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and is widely used in port cargo yards.

Protable Gantry Crane Package and delivery

1 ton Portable Gantry Crane package and delivery

Product Certifications

Our products have passed CE (ECM) and ISO Certifications, and you can also specify a third-party agency for quality testing. Fees of third-party testing are not included in this offer.

ISO CertificationsCE (ECM) Certifications

Technical Standards

International Standards

-- June 9, 1993 / Sept. 22, 1993 notice

-- July 29, 1992, 92-765, 92-766, 92-767 notice

-- DIN 5684

-- DIN 15400; DIN 15401

-- NFE 26-010

-- NFE 26-030

Technical Standards

-- FEM 9.511    Mechanical group

-- FEM 9.661    Hoisting and traveling components size and quality standard

-- FEM 9.671    Wire rope quality standard

-- FEM 9.681    Travel motor choice

-- FEM 9.682    Hoisting motor choice

-- FEM 9.755    Electric hoisting equipment

-- FEM 9.811    Electric crane standard

-- FEM 9.901    Hoisting components design reference

-- IEC 34-1      Traveling and allocation performance

-- IEC 34-5      Protection grade standard

-- IEC 947-5-1   Low voltage equipment

China Main National Standards

Design rules for cranes GB/T 3811-2008

Safety rules for lifting appliances GB 6067-2010

Common crane technical condition GB 7592-87

Crane-Overhead travelling crane and portal bridge crane

tolerances for manufacture and tracks laying GB/T 10183-2010

Crane-test code and procedures GB/T 5905-2011

General Bridge crane GB/T 14405-2011

Portal Crane GB/T 14406-2011

Crane & Lift Equipment Technical Performance and Acceptance Condition GB/T 17908-1999

Electrical installation and acceptation standard GBJ 232-82

Safety of Machinery - Electrical Equipment of Machines

Part 32: Requirements for hoisting machines GB 5226.2-2002

Electrical installation and acceptance standard GB 50256-96

The other protable gantry crane cases in Pakistan

How to customize gantry crane from China

We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a gantry crane, you can leave a message on the website or Email: sales010@cranesdq.com, tell us the following information, and our sales manager will contact you:

  • Lifting capacity (ton): __ ?( The rated capacity)
  • Lifting height (m):__ ? (Height from hook center to the floor)
  • Span (m): __ ? (Distance between rail center)
  • Lifting speed (m/min): __ ? ( Single, Dual, Variable)
  • Traveling distance (m): __ ? (The length of the rail)
  • Work duty: __ ? (How many hours a day? How many times an hour?)
  • What material to be lifted: __ ?
  • Industrial voltage: __ ? ( like :380V, 50Hz, 3ph )
