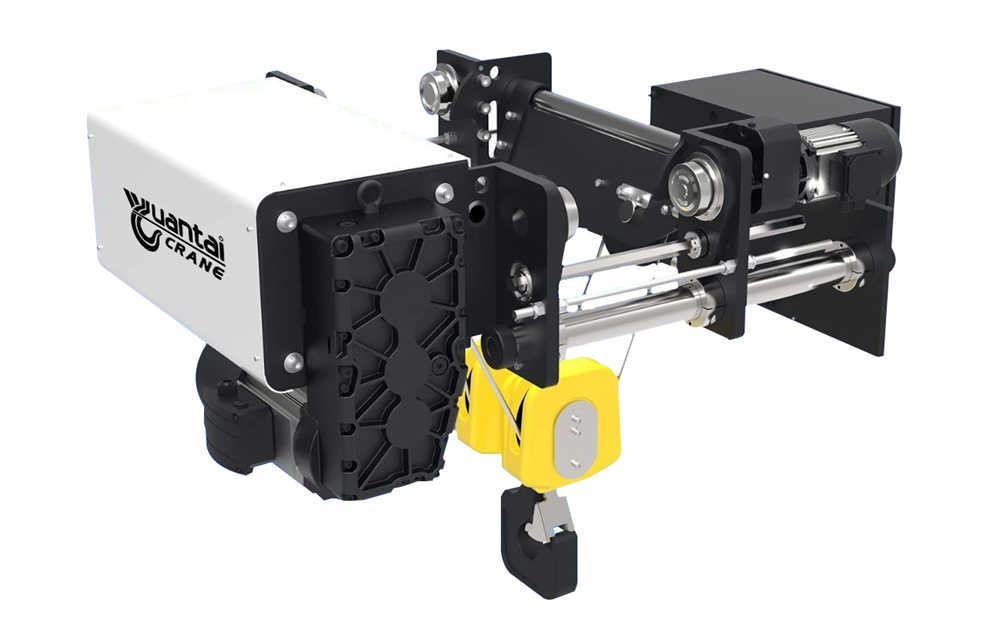

We fulfilled 1 order of NR European Electric Hoist from Pakistan. The customer customized 1 set of 3-ton electric wire rope hoist and 1 set of 5-ton electric wire rope hoist. The main structural material used on the main frame is high-strength Q235B with travelling system. Rational and compact design, Increase the hoist lifting height; make full use of the vertical space. The motor uses a Squirrel Cage and three-in-one hoist motor. Light alloy shell, low carbon alloy forged steel. High quality seals, heavy duty industrial gear oil. Electromagnetic disc type brake system Protection class IP54, Insulation grade F
Note:
| Rated lifting capacity | t | 3 | 5 | |
| Lifting height | m | 7 | ||
| Speed | Hoist traveling speed | m/min | 2.0~20 (inverter control) | |
| Lifting speed | 0.8/5.0 (dual speed) | |||
| Working class | / | FEM2M (ISO M5) | ||
| Power supply | V/Hz/Ph | 380V 50Hz 3Ph | ||
| Control voltage | V | 36 | ||
| Hoist traveling power | KW | 0.4 | 0.64 | |
| Hoisting power | 0.45/3.0 | 1.0/6.1 | ||
| Recommended track width | mm | 150-350 | 120-450 | |
| Total design weight | kg | 360 | 430 | |
| Protection class | / | IP54 | ||
| Insulation grade | / | F | ||
| Ambient temperature | / | -20℃-+40℃ | ||
| Control method | / | Pendant control | ||
| Country of origin | / | China | ||
Our products have passed CE (ECM) and ISO Certifications, and you can also specify a third-party agency for quality testing. Fees of third-party testing are not included in this offer.
We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a wire rope hoist, you can leave a message on the website or Email: sales010@cranesdq.com, tell us the following information, and our sales manager will contact you:
