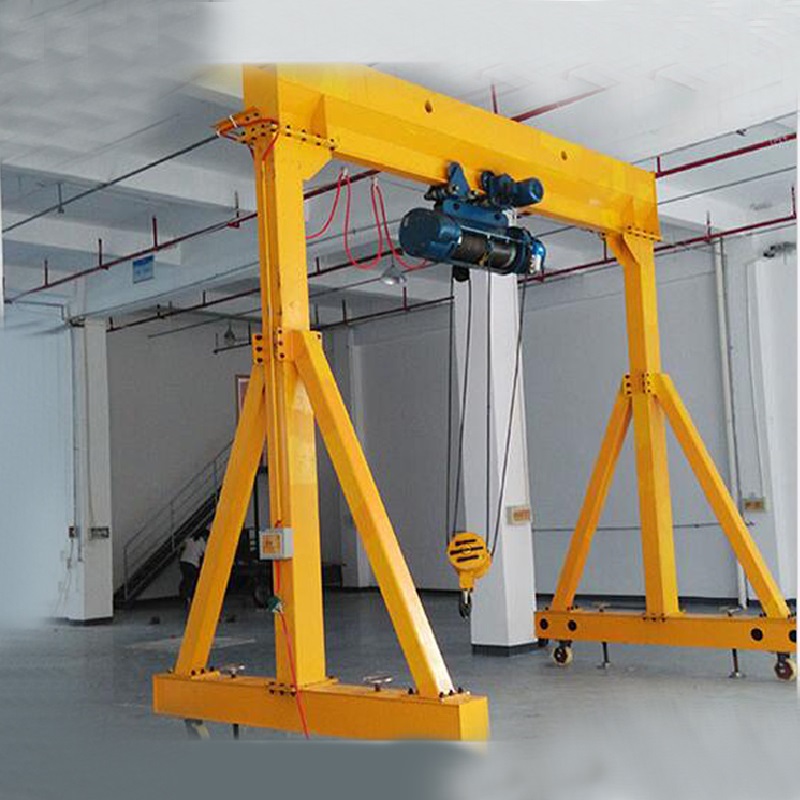

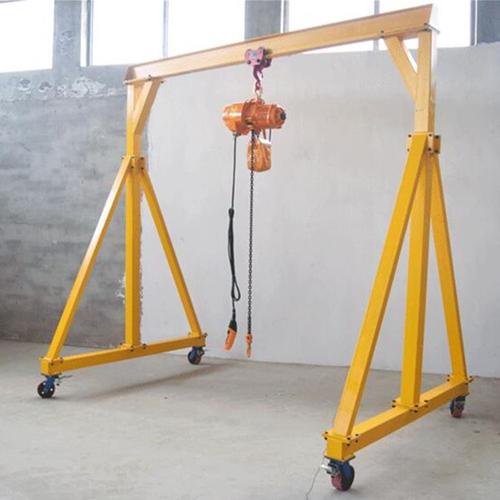

This 0.5 ton portable gantry crane is priced at around $1000 in Malaysia. If you are planning to purchase one 0.5 ton gantry crane, you can take a look at our product. Below are pictures and parameters of this product. This mini gantry crane can be used in workplaces such as Machinery Repair Shops and Manufacturing Plant, and has high flexibility in workshops with limited space.
Mobile lifting equipment is called mini mobile gantry crane as well, which is a simple lifting equipment consisting of two vertical tubes including support and bottom tube. The crossbar tube serves as the main beam to achieve a stable materials lifting and handling.The mini mobile gantry crane has two structural forms, one is adjusted height type and another is fixed height type. It is a cost-effective material solution.
|
Load capacity
|
0.5-5ton
|
|
Span
|
2-12m
|
|
Lifting height
|
1-6m
|
Parameters
|
Item
|
Mini mobile gantry crane
|
||||
|
Capacity
|
0.5ton
|
1ton
|
2ton
|
3ton
|
5ton
|
|
Span
|
2~12m(as your require)
|
||||
|
Lifting height
|
1~6m(as your require)
|
||||
|
Lifting equipment
|
Manual/Electric wire rope or chain hoist
|
||||
|
Working voltage
|
3P 380V 50Hz
|
||||
|
Working class
|
A4
|
||||
| Attention: Above parameters suitable for our company’s standard products, meanwhile,please make contact with our sales manager if you were interested in customized products.
|
|||||
