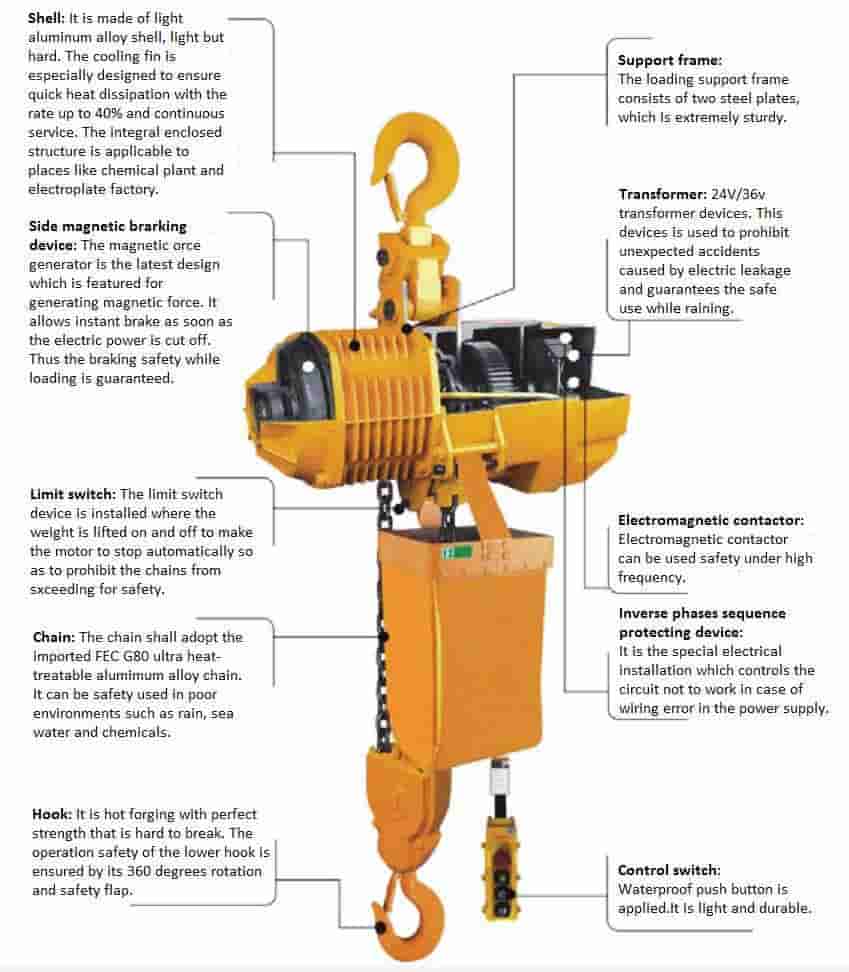

We completed an order for 3 ton electric chain hoist with manual trolley from Suriname. The chain of the electric chain hoist can be safely used in the electric environment, such as rainwater, seawater and chemicals. The hook is hot forged with perfect strength and is difficult to break. The 360 degree rotation of the lower hook and the safety flap ensure the safe operation of the lower hook. After the production of the electric chain hoist is completed in China, it is sent to Paramaribo, Suriname by sea via Shanghai, China
| Lifting capacity | t | 3 | |
| Lifting height | m | 9 | |
| Speed | Travelling speed | m/min | Manuel? |
| Lifting speed | 5.4 | ||
| Chain diameter | mm | 11.2 | |
| Chain fall | / | 1 | |
| Recommended track width | mm | 82-153 | |
| Working class | / | A3 | |
| Power supply | V/Hz/P | 220/60/3 | |
| Control voltage | 36 | ||
| Hoisting power | 3.0 | ||
| Motor revolving speed | r/min | 1440 | |
| Braking method | / | side magnetic braking system | |
| Total weight | kg | 160 | |
| Protection class | / | IP54 | |
| Insulation grade | / | F | |
| Ambient temperature | / | -20℃-+40℃ | |
| Country of origin | / | China | |
Our products have passed CE (ECM) and ISO Certifications, and you can also specify a third-party agency for quality testing. Fees of third-party testing are not included in this offer.
Design and Construction Rules
All the standards required for the cranes are the FEM standard, DIN standard and Chinese National standard.
Europe Main National Standards
— 89/392/EEC standard (93/68/EEC)
— 91/368/EEC standard
— 73/23/CEE standard
— “EMC” standard 89/336/EEC
— EN 60204-1
— EN 292 mechanical safety
— ISO 2141
— ISO 2766
International Standards
— June 9, 1993 / Sept. 22, 1993 notice
— July 29, 1992, 92-765, 92-766, 92-767 notice
— DIN 5684
— DIN 15400; DIN 15401
— NFE 26-010
— NFE 26-030
Technical Standards
— FEM 9.511 Mechanical group
— FEM 9.661 Hoisting and traveling components size and quality standard
— FEM 9.671 Wire rope quality standard
— FEM 9.681 Travel motor choice
— FEM 9.682 Hoisting motor choice
— FEM 9.755 Electric hoisting equipment
— FEM 9.811 Electric crane standard
— FEM 9.901 Hoisting components design reference
— IEC 34-1 Traveling and allocation performance
— IEC 34-5 Protection grade standard
— IEC 947-5-1 Low voltage equipment
China Main National Standards
Design rules for cranes GB/T 3811-2008
Safety rules for lifting appliances GB 6067-2010
Common crane technical condition GB 7592-87
Crane-Overhead travelling crane and portal bridge crane
tolerances for manufacture and tracks laying GB/T 10183-2010
Crane-test code and procedures GB/T 5905-2011
General Bridge crane GB/T 14405-2011
Portal Crane GB/T 14406-2011
Crane & Lift Equipment Technical Performance and Acceptance Condition GB/T 17908-1999
Electrical installation and acceptation standard GBJ 232-82
Safety of Machinery – Electrical Equipment of Machines
Part 32: Requirements for hoisting machines GB 5226.2-2002
Electrical installation and acceptance standard GB 50256-96
