1. Introduction to Shipyard Gantry Cranes in Modern Shipbuilding
The global shipbuilding industry is undergoing a transformative phase, with increasing demand for larger, more complex vessels. At the heart of this industrial evolution lies the shipyard gantry crane – an indispensable workhorse for hull assembly operations. These massive lifting systems have become the backbone of modern shipyards, enabling the construction of everything from nimble coastal patrol boats to colossal LNG carriers and mega cruise ships.
Dongqi Crane, with over four decades of specialized experience in heavy lifting equipment, has emerged as a global leader in designing and manufacturing customized gantry crane solutions for shipyards of all sizes. Our cranes are engineered to meet the exacting demands of hull block assembly, turning operations, and precision positioning, combining robust construction with cutting-edge control technologies.
In this comprehensive guide, we’ll explore:
The critical role of gantry cranes in contemporary shipbuilding processes
Technical specifications that matter most for hull assembly applications
Dongqi’s innovative solutions for various shipyard scenarios
Future trends shaping gantry crane technology
Whether you’re operating a small coastal repair yard or managing a mega-ship construction facility, understanding these aspects will help you optimize your lifting operations and maximize productivity.
2. The Indispensable Role of Gantry Cranes in Hull Assembly
2.1 Why Gantry Cranes Dominate Shipbuilding
Unlike conventional overhead cranes, shipyard gantry cranes offer unique advantages that make them particularly suited for hull assembly:
Unmatched Load Capacity:
Standard models: 50-500 tons
Heavy-duty variants: Up to 1,500+ tons for mega-block handling
Special configurations for aircraft carrier construction exceeding 2,000 tons
Exceptional Span Coverage:
Typical spans: 40-150 meters
Custom designs available for super-sized construction halls
Ability to service multiple workstations simultaneously
Precision Positioning Capabilities:
Advanced anti-sway systems (≤50mm deviation at full load)
Micro-speed control (0.2-2 m/min for final alignment)
Laser-guided positioning for critical welds
Operational Flexibility:
Indoor and outdoor configurations
Rail-mounted or rubber-tired options
Multi-directional movement capabilities
2.2 Key Hull Assembly Applications
Modern shipbuilding relies on modular construction techniques, where massive hull sections (often weighing hundreds of tons) are pre-fabricated and then joined together. Gantry cranes facilitate:
Steel Plate Handling:
Lifting and positioning of curved plating
Rotation operations for double-sided welding
Feeding automated cutting machines
Block Assembly:
Precise joining of pre-fabricated sections
90° and 180° flipping operations
Temporary support during welding
Major Component Installation:
Engine room modules (often 300+ tons)
Bow and stern sections
Superstructure elements
Case Example: At a leading Korean shipyard, Dongqi’s 800-ton gantry crane reduced hull block assembly time by 40% through its dual-trolley system and automated positioning features.
3. Dongqi’s Shipyard Gantry Crane Solutions
3.1 Product Line Overview
Dongqi offers a comprehensive range of shipbuilding gantry cranes, each designed for specific operational requirements:
Model Series
Capacity Range
Span Range
Key Features
Typical Applications
Compact SYG
50-200 tons
20-40m
Cost-effective, fast erection
Small yards, repair docks
Standard SYG
200-500 tons
40-80m
Robust construction, modular design
Mid-size commercial shipbuilders
Heavy SYG
500-1,000 tons
80-120m
Dual hoists, reinforced girders
Large vessel construction
Mega SYG
1,000-2,000+ tons
120-150m
Custom engineering, AI controls
Naval and special vessel yards
3.2 Specialized Features for Hull Assembly

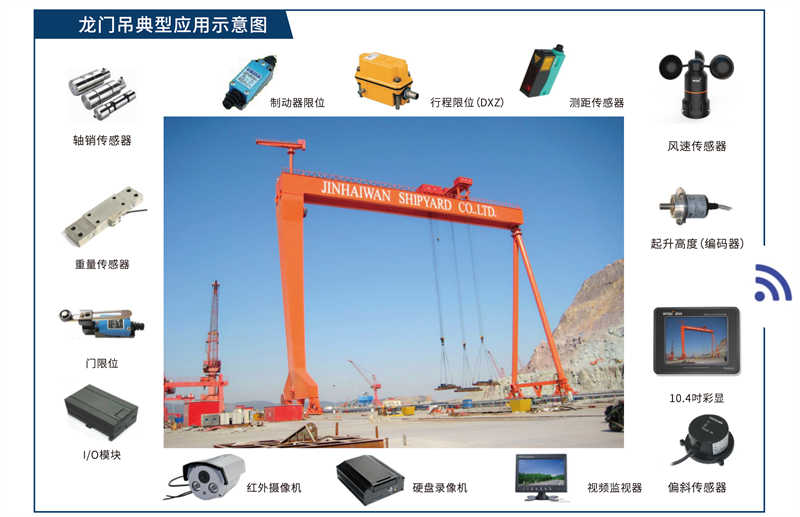

A. Precision Control Systems
Dongqi PCS-5000 control platform with:
10-stage speed regulation
Automatic load balancing
Collision prevention algorithms
Remote diagnostics capabilities
B. Structural Innovations
Hexagonal girder design for 30% better torsional stiffness
Modular construction allowing future capacity upgrades
Technical Spotlight: Our DQ-SYG1000 model features a unique “soft landing” system that reduces impact forces during block placement by up to 70%, significantly improving weld quality and worker safety.
4. Technical Considerations for Optimal Performance
4.1 Structural Configuration Options
Choosing the right structural design is crucial for hull assembly operations:
1. Single vs. Double Girder
Single girder: Cost-effective for light to medium loads (≤300 tons)
Double girder: Essential for heavy loads, offers better hook approach
2. Box Girder vs. Truss Design
Box girder: Superior stiffness, easier maintenance
Wind-resistant designs (up to 42 m/s survival wind speed)
Low-temperature packages (-40°C operation)
Monsoon-proof electrical enclosures
3. Seismic Considerations
Earthquake-resistant designs (up to 0.3g seismic loads)
Base isolation systems for high-risk zones
5. Case Study: Dongqi Crane in Modern Shipyard Applications
5.1 Project Overview: Asian Mega-Shipyard Expansion
Client Profile:
Location: Southeast Asia
Specialization: LNG carrier construction
Annual output: 12+ vessels
Challenges:
Needed to handle 800-ton hull blocks
Required precise positioning (±5mm tolerance)
Limited yard space for crane operations
Dongqi Solution:
DQ-SYG800 heavy-duty gantry crane featuring:
85m span double-girder design
Dual 400-ton hoists with synchronized control
AI-based anti-sway system
Compact end-carriages for space efficiency
Results Achieved:
35% faster block turnover rate
20% reduction in rework due to improved positioning
15% energy savings vs. previous system
ROI achieved in 2.8 years
“The precision and reliability of Dongqi’s gantry crane have been game-changers for our hull assembly process.” – Project Manager, Client Shipyard
6. Buyer’s Guide: Selecting the Right Gantry Crane
6.1 Capacity Planning
Proper capacity determination involves:
Maximum Block Weight Analysis
Consider future vessel size trends
Include rigging and spreader weights
Load Chart Development
Account for various lifting configurations
Include dynamic load factors
Safety Margins
Minimum 25% over rated capacity
Consider fatigue life requirements
Pro Tip: Our engineers recommend choosing a crane with 30% more capacity than your current maximum need to accommodate future growth.
6.2 Span and Height Considerations
Key dimensional factors:
A. Span Determination
Building column spacing
Work area requirements
Future expansion plans
B. Height Requirements
Maximum block height
Hook approach needs
Interference with other equipment
C. Clearance Issues
Building obstructions
Nearby crane operations
Safety zones
6.3 Automation Readiness Assessment
Evaluate your needs across three levels:
Automation Level
Features
Benefits
Investment
Basic
Remote control
Operator safety
$50,000-100,000
Intermediate
Pre-set positions
Faster cycles
$150,000-300,000
Advanced
Full AI control
Labor savings
$500,000+
7. Future Trends in Shipyard Gantry Cranes
7.1 Digital Transformation
A. Smart Crane Technologies
Digital twin integration for predictive maintenance
Real-time performance monitoring
Cloud-based data analytics
B. Advanced Control Systems
Machine learning for motion optimization
Augmented reality operator assistance
Blockchain-enabled component tracking
7.2 Green Technologies
A. Alternative Power Sources
Hydrogen fuel cell options
Battery energy storage systems
Shore power connections
B. Sustainable Materials
High-strength lightweight alloys
Recyclable component designs
Eco-friendly coatings
7.3 Modular and Adaptive Designs
A. Reconfigurable Systems
Adjustable span capabilities
Capacity upgrade paths
Multi-function attachments
B. Rapid Deployment Solutions
Pre-assembled modules
Self-erecting designs
Temporary installation options
8. Why Choose Dongqi for Your Shipyard Gantry Crane?
8.1 Unmatched Industry Experience
40+ years specializing in shipyard cranes
500+ successful installations worldwide
R&D center focused on maritime lifting solutions
8.2 Custom Engineering Capabilities
Site-specific design solutions
Advanced FEM analysis (ANSYS certified)
Full-scale prototype testing
8.3 Comprehensive Support Services
Installation:
Turnkey project management
Local compliance assistance
Maintenance:
Predictive maintenance programs
Global spare parts network
Training:
Operator certification courses
Maintenance technician programs
8.4 Competitive Advantages
30% faster delivery than European competitors
10-year structural warranty
24/7 multilingual technical support
9. Conclusion and Next Steps
Selecting the right shipyard gantry crane for your hull assembly operations is a strategic decision that impacts your productivity, safety, and bottom line for decades. By considering:
✔ Current and future capacity needs ✔ Precision and automation requirements ✔ Site-specific environmental factors ✔ Total cost of ownership
…you can make an informed choice that delivers long-term value.
Dongqi Crane stands ready to partner with your shipyard, offering:
