Space Constraints? Efficient Small Workshop Crane Layout Solutions by Dongqi Crane
1. Introduction
In modern manufacturing and workshop environments, space optimization is crucial for maintaining productivity. Small workshops, in particular, face challenges in material handling due to limited floor space. Efficient crane systems can significantly improve workflow, but selecting the right crane and optimizing its layout is essential.
Key Questions:
How can small workshops maximize crane efficiency in tight spaces?
What types of cranes are best suited for confined areas?
How can Dongqi Crane’s products provide the best solutions?
This article explores small workshop crane layout strategies, focusing on Dongqi Crane’s high-quality lifting equipment. We will analyze different crane types, space-saving configurations, and practical installation tips to enhance workshop productivity.
2. Common Types of Small Workshop Cranes & Their Features
When selecting a crane for a small workshop, the choice depends on lifting capacity, workspace dimensions, and operational flexibility. Below are the most suitable Dongqi Crane models for compact environments:
2.1 Light-Duty Jib Cranes
Best for: Localized lifting in tight spaces
Installation Options: Wall-mounted, freestanding, or column-mounted
Advantages:
360° rotation for flexible material handling
Minimal floor space occupation
Ideal for machine loading/unloading
Dongqi Model Example:DQ-BZ Series Articulating Jib Crane (Capacity: 0.25T–5T)

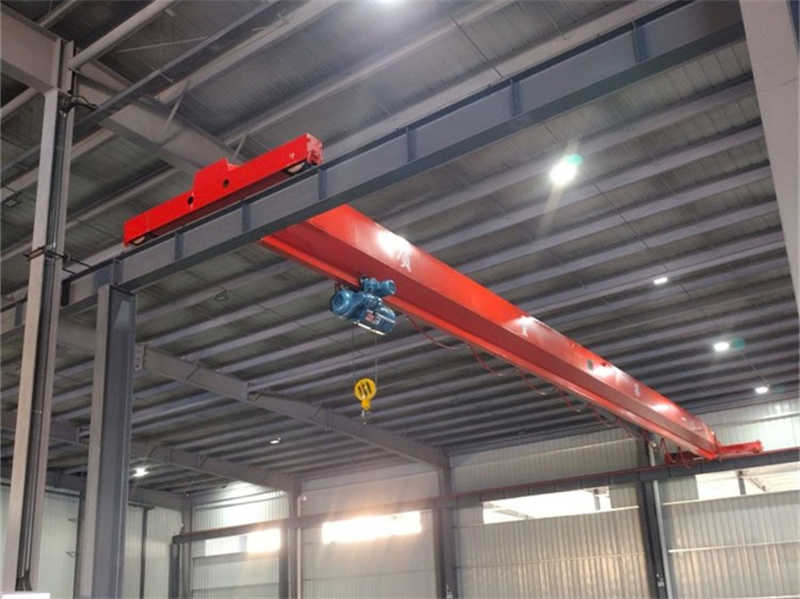

2.2 Electric Chain Hoists (Single/Double Girder)
Best for: Linear material movement along a beam
Advantages:
Compact design, suitable for low ceilings
Smooth operation with variable speed control
Can be integrated with workstation cranes
Dongqi Model Example:DQ-LD Single Girder Crane (Capacity: 1T–20T)
2.3 Mobile Gantry Cranes
Best for: Workshops needing flexible, movable lifting
Advantages:
No fixed installation required
Adjustable span and height
Can be wheeled to different workstations
Dongqi Model Example:DQ-MG Manual Gantry Crane (Capacity: 0.5T–10T)

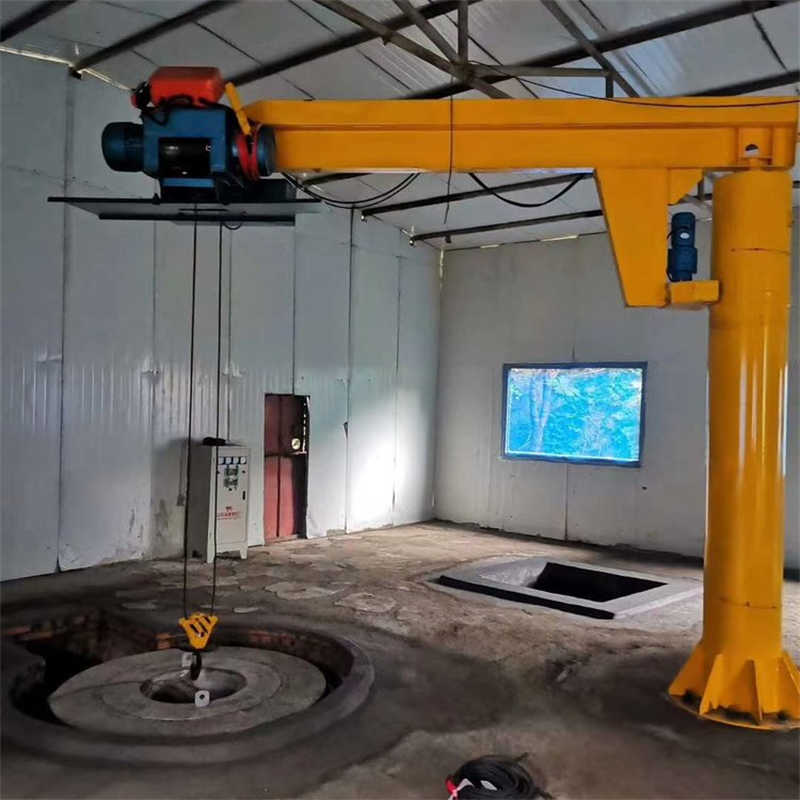

2.4 Pillar-Mounted Slewing Cranes
Best for: Corner installations with 180°–360° coverage
Advantages:
Space-saving mast structure
High load capacity in a small footprint
Ideal for repetitive lifting tasks
Dongqi Model Example:DQ-PS Pillar Jib Crane (Capacity: 0.5T–16T)
3. Key Factors in Small Workshop Crane Layout
3.1 Space Assessment
Measure workshop length, width, and height to avoid obstructions.
Identify dead zones (e.g., near walls, columns) where cranes can be installed.
Ensure adequate clearance for crane movement and operator safety.
3.2 Load & Usage Requirements
Maximum lifting capacity (e.g., 0.5T vs. 5T)
Frequency of use (occasional vs. continuous operation)
Lifting height & span (determines crane reach)
3.3 Installation Options
Type
Best For
Space Impact
Wall-Mounted
Workshops with sturdy walls
Minimal footprint
Freestanding
No wall support available
Requires floor space
Ceiling-Mounted
High-bay workshops
Zero floor occupation
Mobile Cranes
Multi-workstation handling
Flexible positioning
3.4 Safety & Compliance
Follow OSHA/ANSI/ISO standards for crane installations.
Ensure proper load testing before operation.
Maintain safe working distance from other machinery.
4. Optimized Small Workshop Crane Layout Strategies
In small workshops, space efficiency is critical—every square meter must contribute to productivity. Below are detailed crane layout strategies to maximize functionality while minimizing footprint.
4.1 Compact Jib Crane Layout
When to Use:
✔ Limited floor space (e.g., < 50㎡) ✔ Frequent small-load handling (e.g., parts, tools, welding materials) ✔ Need for precise positioning
Dongqi DQ-MG series with polyurethane wheels (0.5T–10T)
No installation – roll to where needed
Foldable models save storage space
🛤️ Track-Mounted Cranes
Overhead rail system along workstations
Manual push or motorized movement
Layout Tip:
Designate “parking zones” for mobile cranes when not in use
Use quick-disconnect power for electric models
4.4 Vertical Space Utilization (3D Layouts)
Stacking Strategies:
🔻 Mezzanine + Crane Integration
Ground floor: Heavy lifting with gantry crane
Upper level: Light-duty jib crane for small parts
🔻 Multi-Level Lifting Paths
Lower zone: Raw material handling
Upper zone: Finished product staging
Example: Metal Fabrication Shop
Level
Equipment
Crane Type
Purpose
0m (Floor)
Press Brake
5T Gantry
Sheet metal loading
3m (Platform)
Assembly Tables
1T Jib Crane
Component positioning
4.5 Safety-Optimized Layouts
Critical Clearances:
⚠ 50cm minimum between crane swing radius and obstacles ⚠ 1m safety buffer around floor-mounted equipment
Anti-Collision Measures:
🔵 Limit switches to prevent over-travel 🔵 Blue safety lighting to mark crane paths 🔵 Weight sensors to prevent overload
Ergonomic Considerations:
Position controls within arm’s reach
Ensure clear sightlines for operators
Summary Table: Layout Strategy Selection Guide
Workshop Limitation
Recommended Strategy
Dongqi Equipment
Tiny floor space (<30㎡)
Wall-mounted jib crane
DQ-WJ Series
Low ceiling height
Underhung single girder
DQ-LD Crane
Frequent layout changes
Mobile gantry crane
DQ-MG Series
Multi-level operations
Mezzanine + jib combo
DQ-PS + DQ-BZ
By implementing these space-conscious crane layouts, small workshops can double usable lifting capacity without expanding their footprint. Dongqi Crane’s modular designs make adaptation easy as needs evolve.
5. Recommended Dongqi Crane Models for Small Workshops
Model
Type
Capacity
Key Feature
DQ-BZ
Articulating Jib
0.25T–5T
360° rotation
DQ-LD
Single Girder
1T–20T
Low headroom
DQ-MG
Mobile Gantry
0.5T–10T
No installation needed
DQ-PS
Pillar Jib
0.5T–16T
Mast-mounted
6. Implementation Steps & Safety Tips
6.1 Planning & Measurement
Create a workshop layout diagram with crane coverage zones.
Check floor load capacity for freestanding cranes.
6.2 Crane Selection & Procurement
Match crane type to load requirements.
Consider future expansion needs.
6.3 Installation & Testing
Ensure proper anchoring for fixed cranes.
Conduct load tests before full operation.
6.4 Maintenance & Safety Checks
Regularly inspect wires, motors, and brakes.
Train operators on safe lifting practices.
7. Conclusion
Small workshops can maximize efficiency even with limited space by choosing the right Dongqi Crane model and optimizing its layout. Whether using jib cranes, gantry systems, or mobile hoists, proper planning ensures smooth material handling without compromising safety.
For customized solutions, Dongqi Crane offers tailored designs to fit unique workshop constraints.
