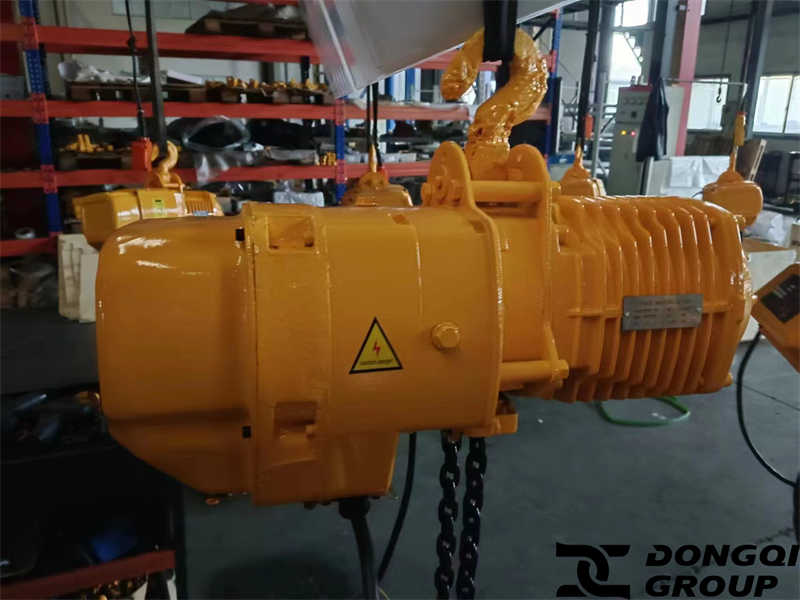

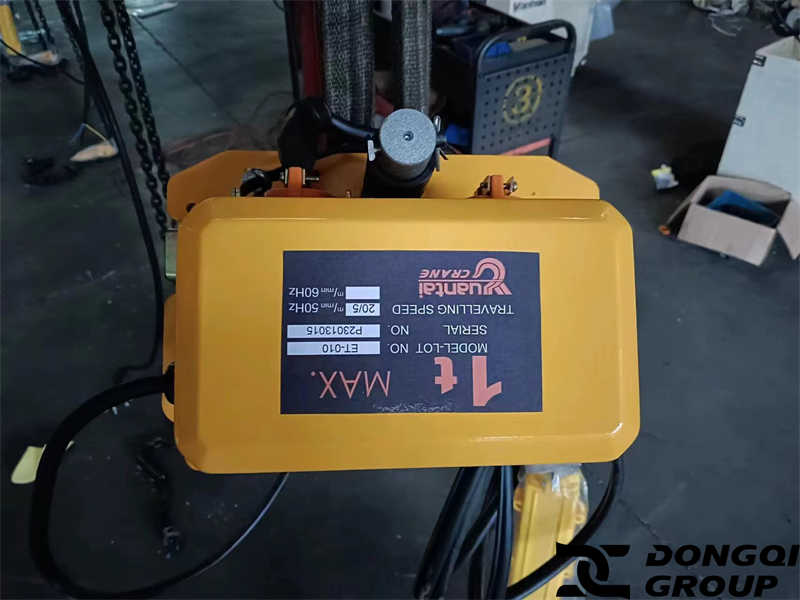

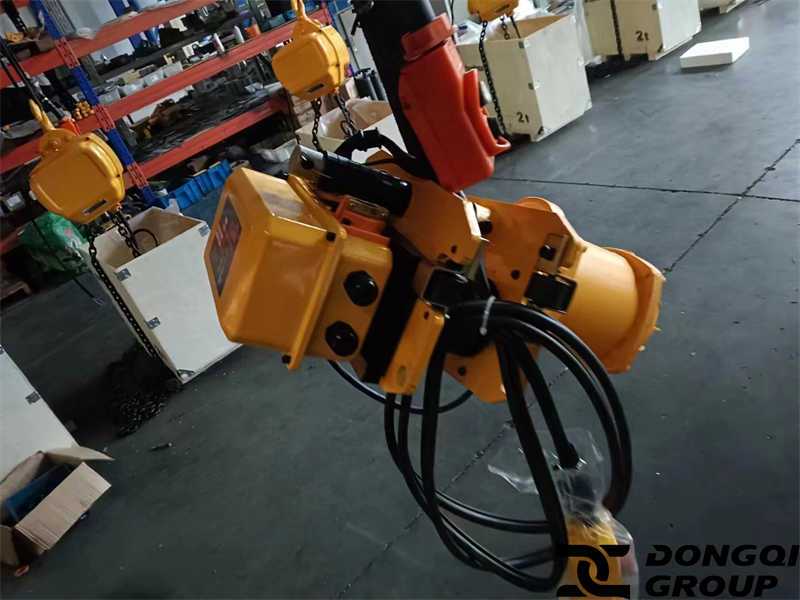

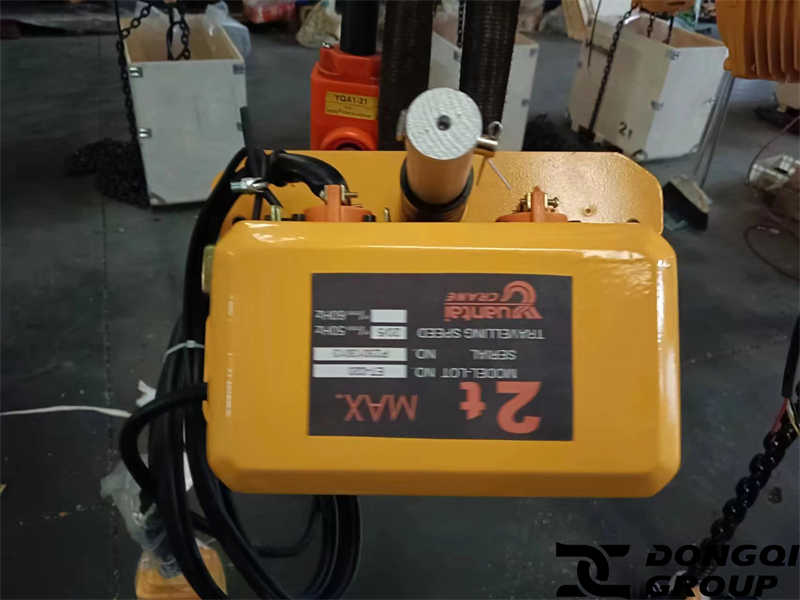

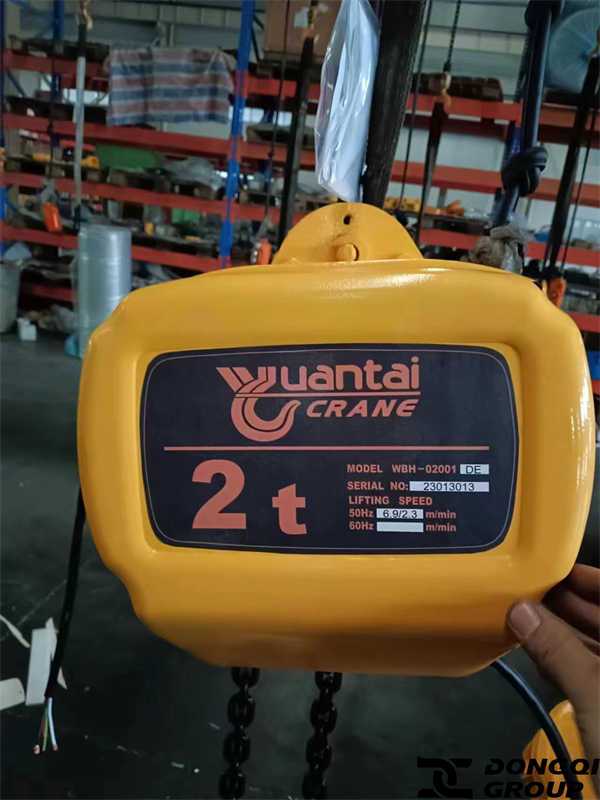

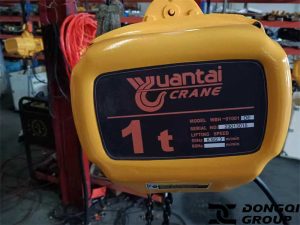

This is the order for overhead cranes and electric hoists sold to Sri Lanka in 2022. The customer purchased one HD type 2-ton overhead crane and two 1-ton electric chain hoists from our crane factory. The lifting height of the electric chain hoist is 4 meters, which is used to operate a dual speed electric hoist. The order was placed at the factory on November 11th, but due to the customer's payment not being received, production began on December 23rd after it was confirmed that the payment had been received. We will ship the product to Sri Lanka on February 28, 2023. The atlas shows some details of electric chain hoists and overhead cranes in the factory. If you want to learn more about overhead cranes and electric chain hoists, as well as the latest prices for 2 tons of overhead cranes, please contact us.
HD crane is a kind of low headroom crane, usually used in factory workshops with low space height, which can effectively use the space height and increase the lifting height.
The HD electric single-girder crane is independently developed and designed on the basis of introducing advanced European design and manufacturing technology and combining the latest domestic standards such as GB3811-2008 and JB/T1306-2008. The appearance is beautiful, and the driving mechanism adopts KONE three-in-one reducer (hard tooth surface reducer, frequency conversion brake motor), which is completely comparable to similar European products in terms of appearance and technical performance. Its superior performance is reflected in the mature application of modular design, frequency conversion speed regulation, automatic detection and other technologies, and various protection functions such as overload protection, overcurrent protection, and voltage loss protection make the electric single beam more perfect.
HD electric single-girder crane is suitable for working in the environment conditions of working level A3～A5, working environment temperature -25℃～+40℃, relative humidity ≤85% and no flammable, explosive or corrosive medium. The lifting capacity is 1-16 tons, and the span is 7.5-25.5 meters. The crane power supply is three-phase AC with a rated frequency of 50Hz or 60Hz. The rated voltage is 220V ~ 660V. The upper and lower limits of the allowable voltage fluctuation of the motor are ±10%, and the internal voltage loss of the crane is not more than 3%.
Electric chain hoist is a light and small lifting equipment. The electric chain hoist is composed of a motor, a transmission mechanism and a sprocket. All electric chain hoists are produced in accordance with international standards, and all internal gears are quenched at high temperature, which increases the wear resistance and toughness of the gears, and the gears fit closely.
Electric chain hoists generally have a lifting capacity of 0.1-60 tons and a lifting height of 3-120 meters. The characteristics of electric chain hoists: advanced performance structure, small size, light weight, reliable performance, convenient operation, wide application range, It is very convenient for lifting heavy objects, loading and unloading work, maintenance equipment, and lifting goods. It can also be installed on suspended I-beams, curved tracks, jib crane guide rails and fixed lifting points to lift heavy objects.
Electric chain hoists have a wide range of applications, mainly used in major factories, warehouses, wind power generation, logistics, docks, construction and other industries, for lifting or loading and unloading goods, and can also lift heavy objects to facilitate work or repair large machine. The electric chain hoist is operated by the operator on the ground with buttons, or it can be operated in the control room or wired (wireless) remote control. The electric chain hoist can be used for fixed suspension, and can also be used with electric monorail trolley and hand-push/hand-pulled monorail trolley for walking.
We are a crane manufacturer located in China, providing crane customization services to global crane customers. If you want to customize a Overhead Crane, you can leave a message on the website or Email: sales010@cranesdq.com, tell us the following information, and our sales manager will contact you:
